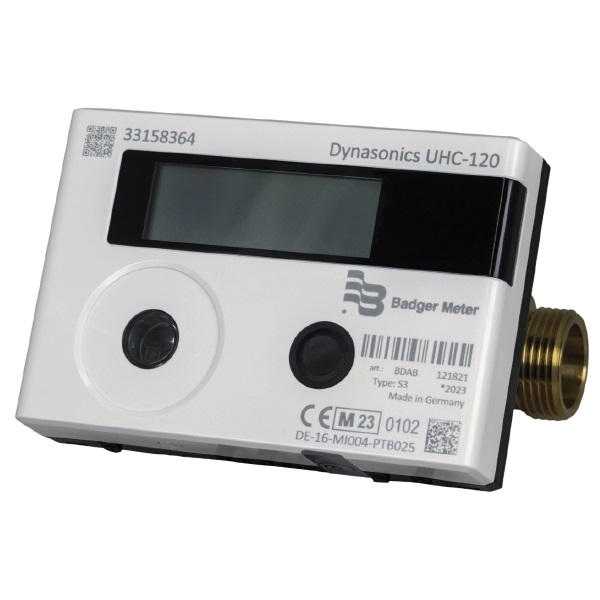

  • UHC-120 Thermal Energy Meters
The UHC-120 ultrasonic thermal energy meters measure consumed heating and/or cooling energy in multi-family residences or commercial buildings. The sealed meter is delivered in user configuration mode with the ability to modify meter parameters and features, including units, mounting position, communication and other meter parameters. After the meter is operational, the settings cannot be changed to prevent unauthorized changes that may affect the meter output.
  • Residential and commercial use
  • MID DN15…DN40
  • Canada 1/2…1-1/2 in. NPT

Modify Configuration

Reset Cancel View Results
Meter Type
Nominal Flow Rate & Meter Size
Reserved
Communications & Power Supply
  • M-Bus Wired Interface; Battery 10-Year
  • Modbus RTU 24V DC external supply; Meter Battery
  • None
  • Pulse Output; Battery 6+1 Year
Temperature Sensor Type
Temperature Sensor Mounting
Temperature Sensor Cable
  • 1.5 m (4.9 ft)
  • 3 m (9.8 ft)
Programming Units
Programming Return/Supply
Item #
