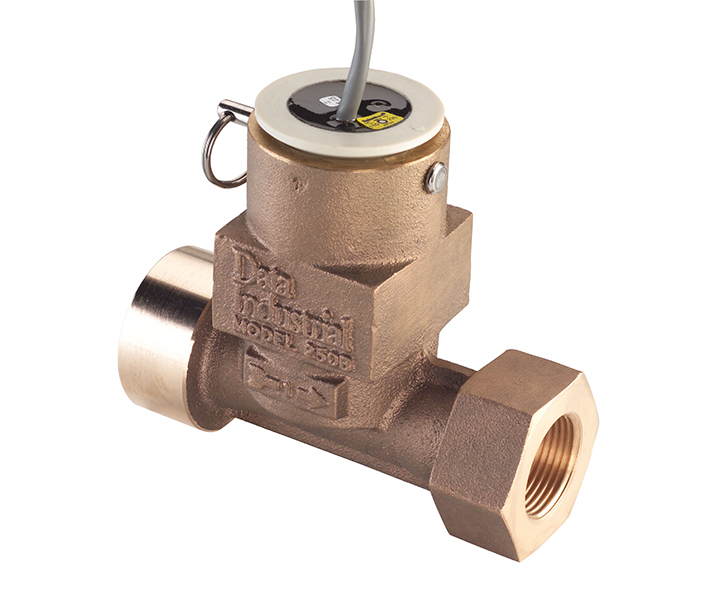

The Series 250 flow sensor from Badger Meter® features a six-bladed impeller design with a proprietary non-magnetic sensing mechanism, mounted in a cast bronze housing, with female NPT threads.
The unique impeller design is less prone to be fouled by waterborne debris. The forward curved shape coupled with the absence of magnetic drag provides improved operation and repeatability even at lower flow rates. This is especially true where the impeller is exposed to metallic or rust particles found in steel or iron pipes. As the liquid flow turns the impeller, a low impedance square wave signal is transmitted with a frequency proportional to the flow rate. The signal can travel up to 2000 ft (610 m) between the flow sensor and the receiving unit without the need for amplification.
All sensors except irrigation versions are supplied with 20 ft (610 cm) of 2-conductor 20 AWG shielded UL type PTLC 221° F (105° C) cable and meet CE standards for noise immunity and susceptibility.
