  • Blue_TFX-500w-with-DTTR_Circular

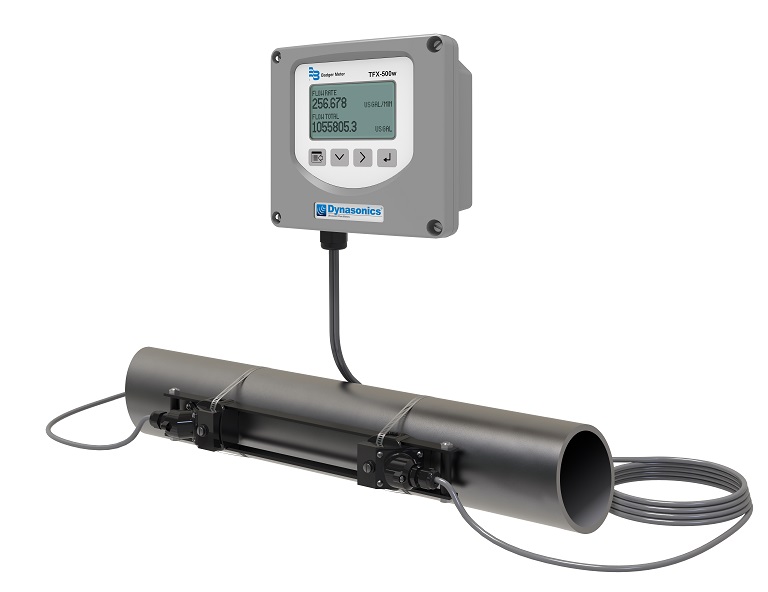

The TFX-500w transit time ultrasonic flow meter measures volumetric flow of clean water in pipes 10 in. or smaller. By clamping on the outside of the pipe, the ultrasonic meter installs without cutting or tapping the pipe.

FEATURES
  • Clamp-on, non-invasive flow meter
  • Bidirectional flow measurement system
  • Measures flow rate, total and velocity of water flow
  • Set up the meter through keypad interface or with SoloCUE® Flow Device Manager software
  • Compact enclosure uses large, easy-to-read graphical display
  • Modbus RTU or BACnet MS/TP over RS485 and BEACON®/AquaCUE® connectivity
BENEFITS
  • Installs without cutting into the pipe
  • Eliminates the costs of inline flanges and pipe fittings
  • No moving parts to maintain
  • No pressure head loss

Modify Configuration

Reset Cancel View Results
Item #
Certification

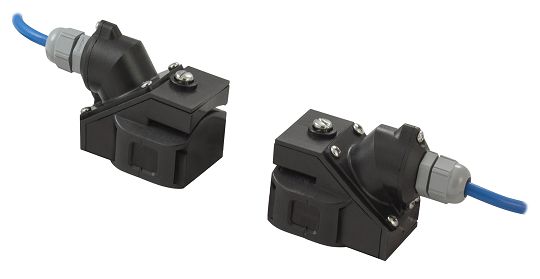

Transducer Type

0.5...2 in (15...50 mm)

1 in. ANSI pipe

1 in. Copper Tube

1/2 in. ANSI pipe

1/2 in. Copper Tube

1-1/2 in. ANSI pipe

1-1/2 in. Copper Tube

1-1/4 in. ANSI pipe

1-1/4 in. Copper Tube

2 in. ANSI pipe

2 in. Copper Tube

2.5…10 in. (65…300 mm)

3/4 in. ANSI pipe

3/4 in. Copper Tube

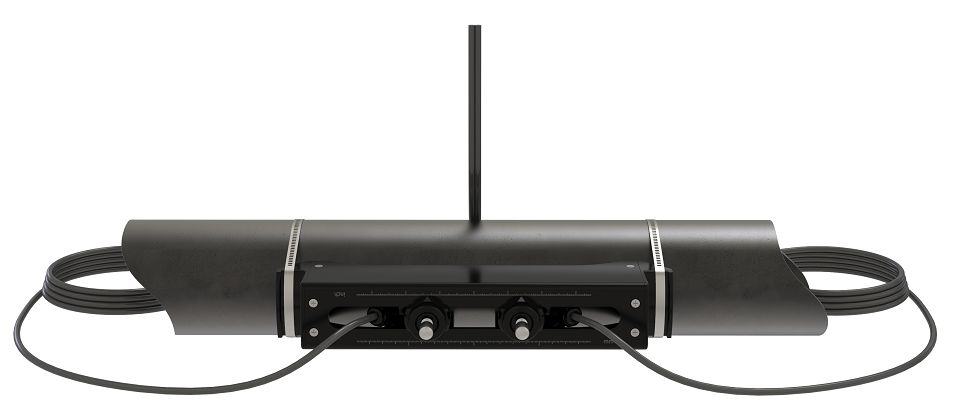

Easy Rail / 2.5…10 in. (65…300 mm)

Easy Rail / 2.5…6 in. (65…150 mm)

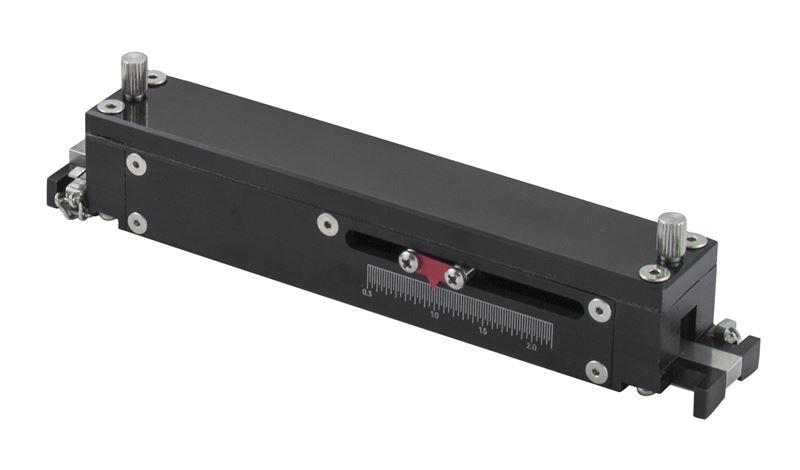

Submersible 2.5…10 in. (65…300 mm)
