The TFX-5000 transit time meter measures volumetric and energy flow rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or sewage.

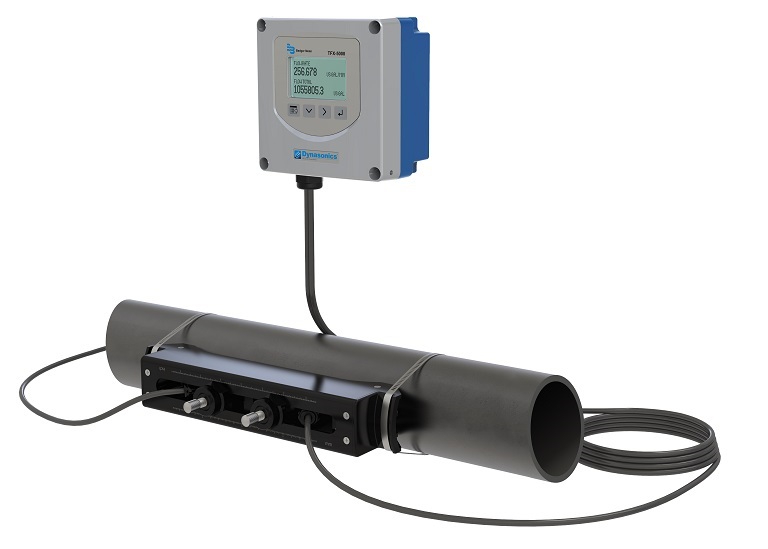

TFX-5000 ultrasonic flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.
BENEFITS
FEATURES
TFX-5000 ultrasonic flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.
BENEFITS
- Reduced installation time and cost
- Non-invasive measurement
- Continued operation during installation—no need to shut down the process
- No pressure head loss
- No moving parts to maintain or replace
FEATURES
- Non-invasive clamp-on ultrasonic transit time flow meter
- Bidirectional, full pipe flow measurement
- Data logging 8 GB with real time clock
- Set up through keypad interface and SoloCUE® software
- Connects to BEACON® AMA and AquaCUE® flow analytics
- Modbus RTU, BACnet MS/TP and Ethernet communications
Unit of Measure
Model |
N/A Flow |
Certification |
N/A General Area US/Canada, CE |
Transducer Type |
N/A Pipes 2.5…12 in. (65…300 mm), Easy Rail |
Transmitter Type |
N/A 110/220 VAC Remote Mounted |
Display |
N/A Display and Keypad |
Remote Cable Length |
N/A 15 feet |
Conduit Type and Length |
N/A None |
Hardware |
N/A 1/2 in. NPT Threads, Poly cable glands |
Wiring Method |
N/A None |
Communication/Output |
N/A Standard Output (Modbus RTU or BACnet MS/TP) |
Units of Measure Totalizer/Flow Rate |
N/A Gallons/gallons per minute |
Testing & Tagging |
N/A Factory Calibrated |
